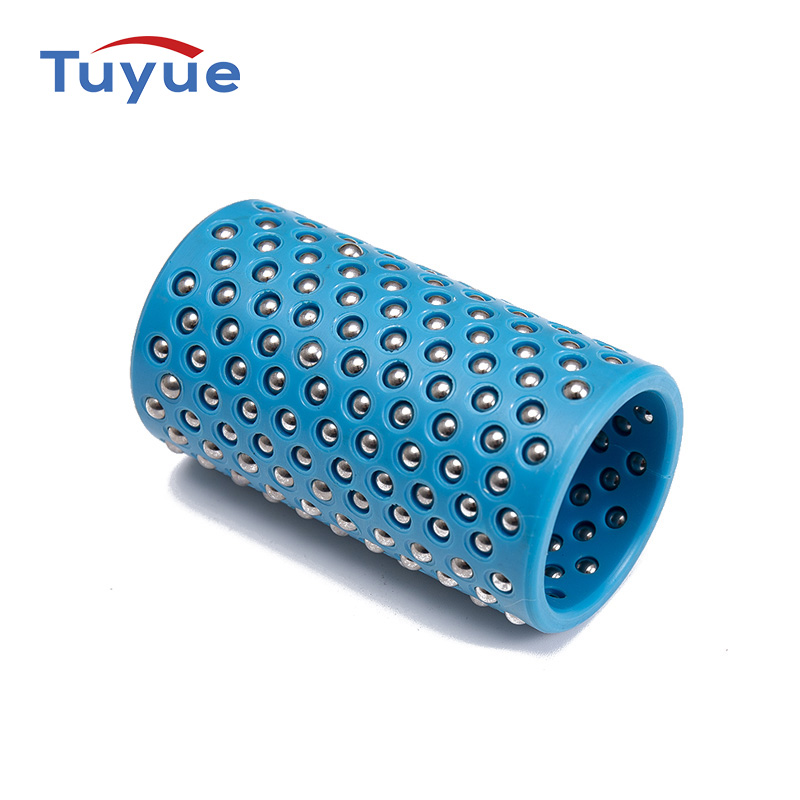

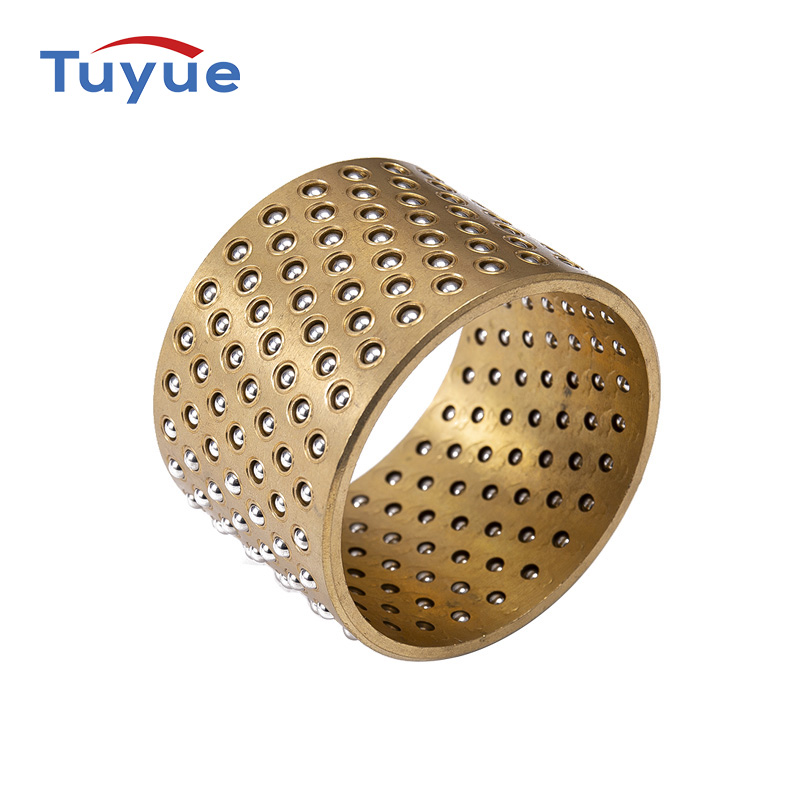

Ball retainer bearings, such as the FZH, FZL, and FZP series, provide reliable, low-friction, and high-precision motion control for modern industrial machinery. Constructed from copper, aluminum, or POM bases with embedded steel balls, these bearings feature an innovative design in which the ball diameter exceeds the retainer thickness. This allows direct face-to-face contact with guide bushings, improving precision, reducing friction, and ensuring smooth rotational and vertical motion—outperforming traditional designs that often suffered from higher friction and clearance issues.
These bearings are particularly suited for applications requiring both rotational and vertical motion with high accuracy. They are widely used in punching machines, die-making equipment, and other precision machinery where consistent motion and dimensional accuracy are critical. By combining rolling motion with a low coefficient of friction, ball retainer bearings enhance operational efficiency, reduce wear, and extend the service life of guiding components.
Innovative Retainer Design: Steel balls make direct contact with guide bushings, improving precision and minimizing clearance.
Low Friction: Optimized ball-to-bushing contact reduces friction, ensuring smooth rotational and vertical movement.
High Precision: Accurate alignment reduces operational errors and enhances machine performance.
Durable Materials: Copper, aluminum, or POM bases with embedded steel balls provide excellent wear resistance and long-term reliability.
Versatile Operation: Suitable for combined rotational and vertical movements in high-precision machinery.
Guide Bushings: Material GCr15/YB9; heat-treated to HRC 62–66; tolerance 0.01–0.02 mm; surface roughness 0.05 μm.
Guide Posts: Material GCr15/YB9; heat-treated to HRC 62–66; shaft tolerance h5; surface roughness 0.05 μm.
Size Testing: Measured with outside micrometer and dial gauge; Ymax (Ymax+2d–Dmin) within 0.01–0.02 mm.
Materials: Copper, aluminum, or POM base with embedded steel balls.
Operational Performance: Provides high-precision rotation and vertical motion with reduced friction.
High-precision industrial machinery
Punching and die-making equipment
Mechanical assembly systems requiring accurate rotation and vertical movement
Tooling and stamping machines
Manufacturing equipment demanding consistent motion accuracy
Manufacturers of high-precision machinery
Tooling and die-making companies
Industrial equipment designers and engineers
Maintenance and operations teams in high-accuracy production environments
Distributors of precision bearing components
By integrating ball retainer bearings, industries benefit from enhanced motion control, superior precision, and long-lasting performance. These bearings reduce friction, improve machine accuracy, and extend service life, making them indispensable for demanding industrial and high-precision applications.
