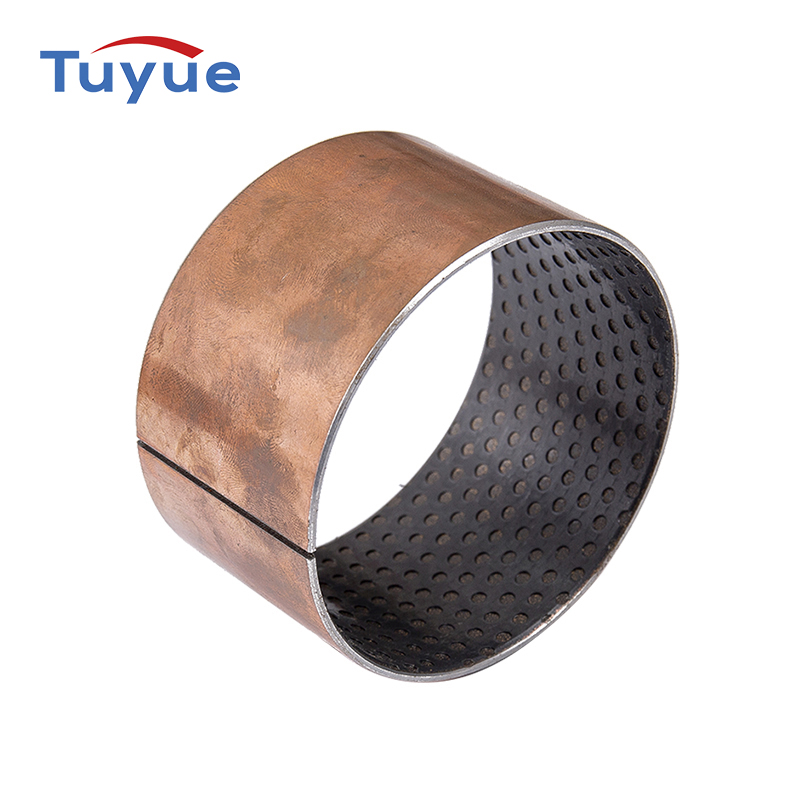

Material Structure
POM+Porous Bronze+Steel Backing
Feature
1. Three Layer Material
2. Oilless Self-Lubricating and Low Maintenance
3. With Oil Pits or Grooves
4. Suitable for places with low speed and medium load under normal temperature
5. Replace Traditional Bronze Bush to Reduce costs and Extend service life
6. Save the refueling frequency
7. Simplify the replacement procedure
Application
1. Automobile chassis
2. Forging machine tools
3. Metallurgical mining machinery
4. Engineering machinery
5. Water and electricity
6. Steel rolling industry
Standard Bearing Forms
Cylindrcal bushes
Flanged bushes
Thrust washers
Sliding plates
Technical Date
| Performance index | Data |
| Max.Load | Static load capacity: 70 N/mm² |
| Dynamic load capacity: 250 N/mm² | |
| PV limit | 22N/mm2.m/s |
| Temp.limit | -40~+130℃ |
| Friction coeff | 0.05~0.25μ |
| Speed limit | 2.5m/s |
Optimize your mechanical systems with POM-based plain bearings featuring boundary lubrication. Crafted from high-performance polyoxymethylene (POM), these bearings provide reliable, low-friction operation while reducing wear on mating components. The built-in boundary lubrication enhances performance in environments where traditional lubrication is limited or intermittent.
Self-Lubricating POM Surface: Minimizes friction and extends the lifespan of both the bearing and mating surfaces.
Boundary Lubrication: Ensures smooth motion even under limited or challenging lubrication conditions.
High Load Capacity: Designed to withstand significant radial and axial loads in industrial, automotive, and machinery applications.
Corrosion and Chemical Resistance: POM material offers excellent resistance to moisture, solvents, and many chemicals.
Maintenance-Free Operation: Reduces downtime and maintenance costs with long-lasting performance.
Ideal for sliding, pivoting, and rotational applications, these POM-based plain bearings deliver dependable, low-maintenance operation, ensuring consistent efficiency and longevity in demanding mechanical systems.
