Material Structure
High Density Copper Alloy (CuSn8P0.3/CuSn6.5P0.1)
Feature
1. Thin-wall rolled bushing
2. With orderly circular oil holes
2. Injected with lubricating grease after assembly, with seals on both ends
3. Large oil storage
4. Easy installation
5. Smaller in size
6. Lower costs to replace traditional casting copper bushing
7. Suits for medium-load and low-speed occasions
Application
1. Conveyors
2. Lifters
3. Winches
4. Levelling machines
Standard Bearing Forms
Cylindircal bushes
Flanged bushes
Thrust washers
Sliding plates
Chemical Composition
| Material | Cu | Sn | P |
| CuSn8P0.3 | 91.7% | 8.5% | 0.2% |
| CuSn6.5P0.1 | 93.4% | 6.5% | 0.1% |
Physical Property
| Type | Hardness | Applicable temperature range | Max.Load | Speed limit |
| TY-090 | HB90-120 | -80℃~200℃ | 75N/mm2 | 2.5m/s |
| TY-092 | HB90-120 | -100℃~200℃ | 60N/mm2 | 2.5m/s |

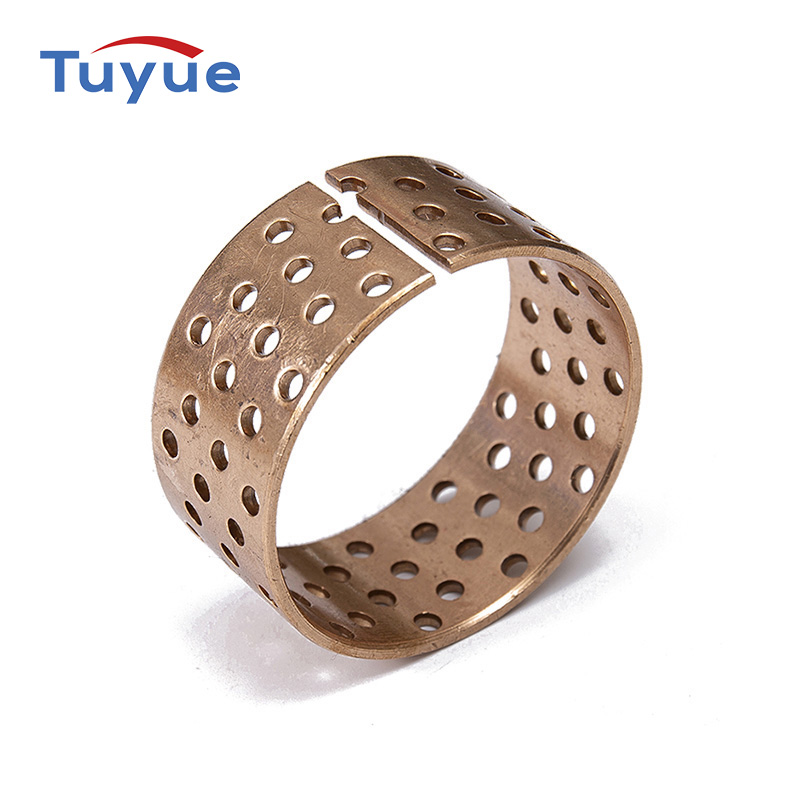

Designed for medium-load, low-speed applications, Wrapped Bronze Bearings with Holes combine a thin-wall rolled structure with strategically placed circular oil holes for superior lubrication. Pre-filled with grease and sealed at both ends, these bearings offer long-lasting performance, easy installation, and reliable operation, all in a smaller, cost-effective design that replaces traditional casting copper bushings.
Thin-Wall Rolled Design: Compact and lightweight, ideal for space-constrained applications.
Orderly Circular Oil Holes: Enhance lubrication distribution and ensure smooth operation.
Pre-Greased with End Seals: Large oil storage reduces maintenance and extends service life.
Easy Installation: Ready to fit, saving time and effort during assembly.
Cost-Effective Alternative: Smaller and more economical than traditional casting copper bushings.
Medium-Load, Low-Speed Optimization: Designed for reliable performance in moderate applications.
