Material Structure
High Density Copper Alloy (CuSn8P0.3/CuSn6.5P0.1) With Graphites Embedded
Feature
1. Made of high-elongation copper alloy with thin wall
2. With ideal solid lubricants (graphites) embedded on the surface
3. Can be used in occasions without oil lubrication
Application
1. As wear-resistant bushing in the automotive transmission shaft
2. Rotating parts of outdoor high-altitude equipment
3. Other occasions without oil lubrication
Availability
Cylindrical bushes, thrust washers, strip and non-standardparts as the cilents supplied drawing etc.
Tolerance
Recommend housin tolerance H7 and the shaft as f7.
Standard Bearing Forms
Cylindircal bushes
Flanged bushes
Thrust washers
Sliding plates
Technical Date
| Performance index | Data |
| Materil | CuSu6.Pb0.1+Graohite |
| Max.Load Capacity P | 65N/mm2 |
| Working Temperature | 260℃ |
| Friction Coef μ | 0.06~0.20 |
| Speed limit V | 4m/s |

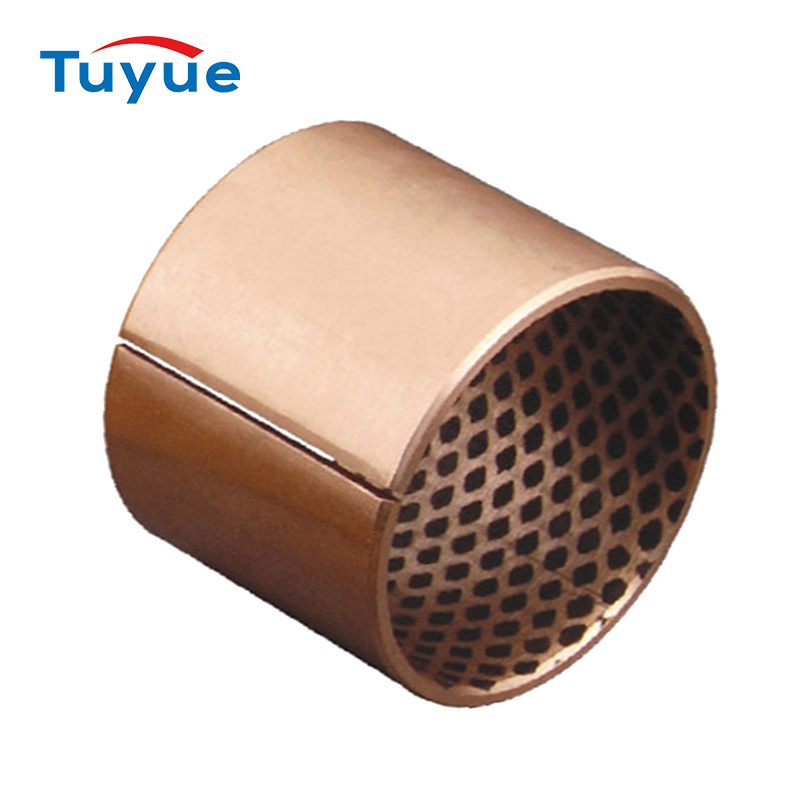

Engineered for applications where traditional lubrication is not feasible, Wrapped Bronze Bearings with Solid Lubricants combine a high-elongation copper alloy with embedded solid lubricants such as graphite. This design ensures smooth, wear-resistant operation, even in environments without oil lubrication, providing long-lasting reliability and reduced maintenance.
High-Elongation Copper Alloy: Thin-wall construction delivers strength, flexibility, and durability.
Embedded Solid Lubricants: Graphite on the bearing surface ensures continuous lubrication without external oil.
Maintenance-Free Operation: Ideal for conditions where regular lubrication is difficult or impossible.
Wear-Resistant: Optimized for long service life under frictional and rotational stress.
