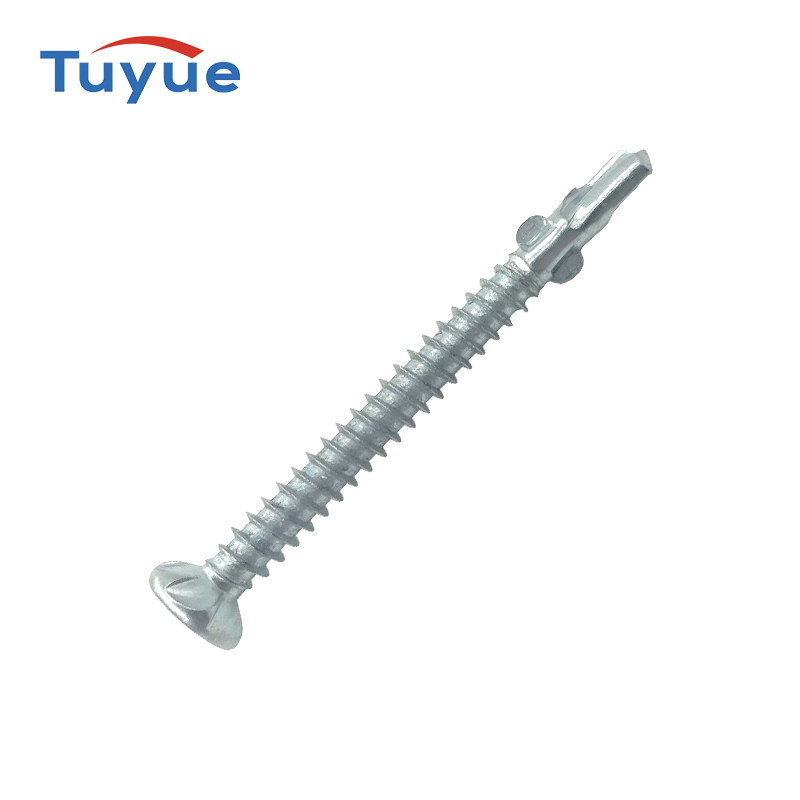

When working with brittle substrates such as fiberglass, plastic composites, or thin-gauge sheet metal, standard self-drilling screws often crack or split the surrounding material during installation. The Drilling Screw With Wring is engineered specifically to address this challenge. Combining a precision ribbed countersinking profile with breakaway wings beneath the head, this fastener delivers clean, flush, and crack-free installation across a wide range of demanding industrial and construction applications.
Zhejiang Jiaxing Tuyue Import and Export Co., Ltd. has been producing precision hardware and fasteners for over 20 years. With a factory area exceeding 16,000 m², ISO-certified quality control, and annual shipments serving 200+ customers globally, Tuyue is a trusted one-stop fastener supplier for projects of any scale.
The defining feature of this screw is the dual-function geometry beneath the flat head. The ribbed nibs — precision-formed radial ridges — act as a cutting guide as the screw is driven into the substrate. Unlike smooth underhead profiles that simply compress material downward (causing stress fractures in brittle composites), the ribs shear and displace material progressively and symmetrically. This controlled displacement eliminates the micro-cracking and delamination that frequently occur when standard screws are driven into fiberglass panels, PVC composites, or thin aluminum sheets.
The breakaway wings extend beyond the thread diameter and pre-ream the countersink cavity to the correct diameter before the head seats. Once the head contacts the material surface, the wings snap off cleanly, leaving a perfectly sized countersink recess. The flat head then sits exactly flush — no protrusion, no gap, no rocking. For a technical comparison of wing-type vs. standard drilling screw performance, refer to our blog post on self-drilling vs. self-tapping metal roofing screws.
Thread form: Coarse self-drilling thread, optimized pitch for thin material engagement without stripping.
Point type: Self-drilling (Tek-style) drill point, eliminating the need for pilot holes in substrates up to the rated gauge thickness.
Head geometry: Flat (countersunk) 82° or 90° profile, compatible with Phillips or combination drive bits.
Underhead feature: Precision ribbed nibs for countersinking guidance; breakaway wings for pre-reaming.
Material: Case-hardened carbon steel (standard); stainless steel grades available on request.
Drive type: Phillips (PH2), combination Phillips/slotted, or square drive options.
Length range: Typically 19 mm to 76 mm (3/4" to 3"), custom lengths available.
Diameter: #8 to #14 (metric M4 to M6 equivalents), depending on application requirements.
The Phillips flat head self-drilling screw with wing nibs under the head represents a refined variant with an enhanced nib pattern for superior torque distribution during countersinking.
Surface treatment is critical when fasteners are deployed in outdoor, marine, or chemically aggressive environments. Tuyue supplies this screw series with the following coating options:
Zinc-nickel alloy plating: Achieves 720+ hours in neutral salt spray testing (per ASTM B117). Recommended for marine structures, offshore panels, and saltwater-exposed cladding where standard zinc coatings fail prematurely.
Dacromet coating: A water-based, chrome-free inorganic zinc flake coating offering outstanding resistance at temperatures up to 300°C. Preferred in high-temperature industrial enclosures and automotive underbody applications. Dacromet also provides excellent chemical resistance against fuels and hydraulic fluids.
Electro-galvanized (EG) finish: A uniform electrodeposited zinc layer providing reliable protection in standard industrial and indoor/outdoor environments. EG-coated screws offer consistent appearance and good corrosion resistance at a competitive cost point for volume applications.
Hot-dip galvanized (HDG): Available for specific project requirements where maximum coating thickness (typically 45–85 µm) is specified by structural codes.
Stainless steel (A2 / A4): For the most demanding marine or food-grade environments, stainless steel variants are available within the broader stainless steel bolt nut screws washers range supplied by Tuyue.
Automotive body panels and trim: The flush flat head eliminates snagging points on panel edges. The rib-guided countersinking prevents cracking in painted or gel-coated fiber-reinforced panels, where rework is costly.
Electrical enclosures and control panels: Flush mounting is a safety and regulatory requirement in many enclosure standards. The wing-break mechanism ensures consistent seating depth without operator-dependent torque control, reducing the risk of over-driving into thin steel or polycarbonate walls.
Cladding and façade systems: Architectural cladding in aluminum composite or fiber cement board requires fasteners that do not telegraph (visually protrude through surface coatings). The flat-head wing screw achieves invisible installation when used with color-matched painted finishes.
Marine and offshore installations: Combined with zinc-nickel or stainless coating options, these screws are suitable for GRP (glass-reinforced plastic) boat decking, fiberglass hatch panels, and marine-grade composite decking — all substrates sensitive to cracking from conventional fastener installation.
Solar and photovoltaic framing: Although dedicated solar and photovoltaic module fasteners are available from Tuyue, flat head wing screws are regularly used in PV mounting substructures where composite or thin-gauge aluminum rails require flush attachment without substrate damage.
HVAC and ductwork: Thin-gauge galvanized steel duct panels require screws that engage without tearing or deforming the sheet. The drill point and rib geometry provide clean entry and positive thread engagement even in 0.5 mm steel.
Drive speed: Use a variable-speed driver set at medium torque (typically 10–15 N·m depending on substrate). Excessive speed generates heat that can discolor or melt polymer composites before the wings break away.
Drive bit: PH2 Phillips bit is standard. Maintain axial alignment throughout driving to ensure even rib contact and symmetric wing breakage.
Pre-drilling: Not required for substrates within the screw's rated drilling capacity. For fiberglass panels over 6 mm thick, a light pilot dimple (not a through-hole) can improve initial point engagement.
Wing breakage confirmation: A slight audible click and reduction in resistance confirm wing removal. If resistance persists, check that the correct screw length and drill-point rating are matched to substrate thickness.
Torque-limiting clutch: Recommended for production line use to prevent over-seating, which can fracture the countersink perimeter in brittle composites.
Tuyue's roofing screws and drilling screws product line is manufactured under strict process controls covering raw material selection, cold heading, thread rolling, heat treatment, and surface coating. Each production batch undergoes dimensional inspection and salt spray testing to verify coating performance before dispatch. OEM configurations — including custom head markings, proprietary coating specifications, and non-standard lengths — are supported with sample confirmation prior to bulk production, following Tuyue's standard order tracking process.
For buyers evaluating total cost of ownership, the wing and rib design reduces rework rates and eliminates substrate replacement costs associated with cracking — particularly relevant in fiberglass and composite panel applications where material costs are high. Combined with Tuyue's competitive factory pricing and 800+ annual container shipment capacity, this product represents both technical reliability and commercial value.
For further technical reference on related fastener standards and engineering considerations, see our guides: DIN 933 Hex Head Bolts: A Complete Technical & Industry Guide and Countersunk Head Machine Screw: Everything Engineers Need to Know.
